Shred Consoles vs Shredder Bins: What the HSM Executive Shred Console Is For

A shred console is a lockable, furniture-grade cabinet with a deposit slot on top. Staff drop confidential paper through the slot, the paper sits secured inside until someone with the key empties it, and it is then shredded either in-house on a departmental machine or by a collection service. A shredder bin is something different: it is the open or lockable waste container under or beside a shredder that catches the shredded output, or a wheeled collection cart used to move paper and shreds around a building. A shred box or box insert is the disposable cardboard liner that sits inside a shredder cabinet and is thrown away with the shreds. Consoles collect before shredding; bins and boxes handle after shredding or in transit. Most offices with a document-security policy need both, and this guide explains how to place and size them.

What is a shred console?

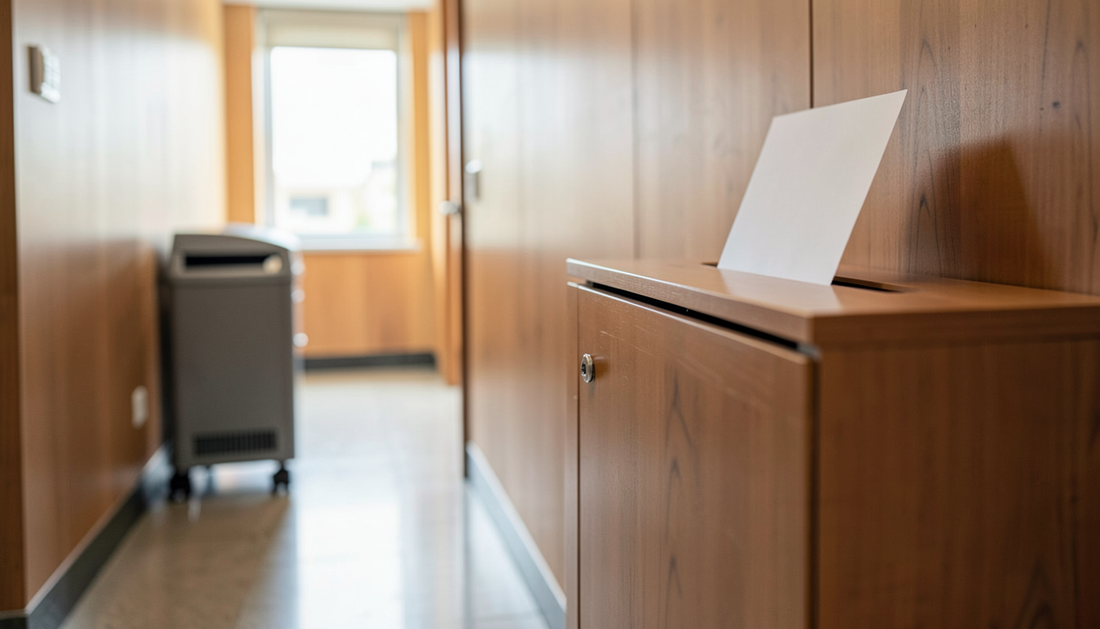

The HSM Executive Shred Console is the type specimen. It looks like a small credenza or side cabinet, finished to sit in an executive office, a reception area or a boardroom without looking like waste equipment. The slot on top is sized to accept flat documents but not a hand, and the door on the front is locked with a key held by whoever is responsible for emptying it. Inside, a bag or a removable container collects the paper. That is the whole design: a secure, presentable, single-purpose collection point for paper that must not go into an ordinary bin.

The console exists because shredding is rarely done at the moment a document becomes waste. A signed contract draft, a printed patient list, a payroll report or a client statement is finished with at a desk, and the person holding it needs somewhere to put it that is not the recycling bin and is not a pile on the corner of the desk. Walking to the copy room to shred one sheet does not happen in practice. A console within a few steps of every workstation solves that behaviour problem, which is why shredding services have placed consoles in offices for decades. Buying your own consoles and shredding in-house on an HSM machine keeps the same discipline and removes the service contract.

Consoles are not shredders and do not contain any cutting mechanism. They should not be confused with a shredder cabinet, which is the housing of the shredder itself, or with a shredder bin, which we cover next. Our guide to HSM shredder bins and collection carts covers the post-shredding side of the workflow in detail.

Shredder bins, collection carts and box inserts

Every HSM shredder has a container beneath the cutting head. On personal and small office machines it is a pull-out bin or a bag on a frame. On departmental and high-capacity machines it is a larger bin or a cardboard box insert on a slide-out shelf. HSM also sells free-standing lockable bins in 24, 27 and 30 gallon sizes and larger 32, 65 and 95 gallon bins, plus wheeled collection carts. These do two jobs. The first is capacity: a shredder that runs all day fills its own bin quickly, and staging a larger bin or a cart beside it keeps the machine working. The second is transport: a lockable bin on wheels is the safe way to move unshredded paper from a console to the shredder, or shredded paper from the shredder to the loading dock, without leaving it exposed.

Box inserts are the disposable option. HSM makes corrugated inserts that fit specific shredder series, and they line the cabinet so the shreds can be lifted out and disposed of without a bag. They are inexpensive, recyclable with the shreds, and tidy, and they are the right choice where the shredder feeds a paper recycling stream. Bags do the same job in a different material and suit sites where shreds go to general waste or where the shredder cabinet is not designed for a box. Both are in the shredder boxes and shredder bags collections, and lockable bins and carts are in the shredder bins and collection cart collections.

Where each one belongs

Executive offices and partner offices are where consoles earn their place. The people in those rooms handle the most sensitive paper, generate it steadily, and will not use anything that looks like a trash can. A console in wood or neutral finish beside the desk or credenza is the only collection method that gets used consistently. Reception and front desks are the second obvious location: visitor logs, sign-in sheets, delivery notes and misdirected printouts all accumulate at the front of the building, and a console there stops them ending up in the general bin under the counter.

Open-plan floors are a numbers exercise. A console at the end of each row or bank of desks, within a short walk of every seat, will be used; one per floor by the elevator will not. In practice one console per group of ten to twenty workstations is a reasonable starting density, adjusted by how much paper the group actually handles. Copy rooms and print rooms are where the shredder itself usually lives, and here you want the shredder plus a lockable bin or cart beside it for overflow, not another console. Mail rooms, HR, finance and legal departments often warrant a console plus a departmental shredder in the same room, because the volume is high enough to shred daily and the paper is sensitive enough not to travel.

Hospitals and clinics follow the same rules with a stricter emptying schedule. Nursing stations, records rooms and admissions desks each need a console, and the collection round must be logged. Our article on HIPAA-compliant HSM shredders for medical practices covers the shredder side of that workflow.

Chain of custody and reasonable measures

US privacy rules do not prescribe a specific piece of furniture, but they do require that businesses take reasonable measures to protect personal information from the moment it is created until it is destroyed. The FTC's Disposal Rule under FACTA requires reasonable measures for consumer report information; HIPAA requires covered entities to safeguard protected health information in all forms, including paper awaiting destruction; and state laws in most jurisdictions add their own destruction requirements. An open recycling bin full of client statements in a corridor fails every one of these tests. A locked console, a logged emptying round, a lockable transport bin and a shredder with an appropriate DIN 66399 security level pass them, and together they form a documented chain of custody that an auditor or an insurer can follow.

The practical minimum is this: paper is secured at the point of disposal (console), remains secured in transit (lockable bin or cart), is destroyed on a machine whose particle size matches the sensitivity of the material (see our DIN 66399 security level guide), and the process is written down and followed. Key control matters: consoles should be keyed alike within a site so one custodian can empty them, and the key should not be left in the lock. If a shredding service is used instead of in-house shredding, the service's certificate of destruction closes the loop and should be filed.

Sizing a collection network

Start by counting the collection points using the placement rules above, then decide the emptying cadence. A console fills at a rate that depends entirely on the department. A legal or accounting group in a busy period can fill one every few days; a marketing team may take a month. Rather than guess, place the consoles, empty them weekly for the first month and note how full each one is. Then set a cadence per console: daily for high-volume or high-sensitivity locations, weekly for most, and monthly for lightly used ones, with the rule that no console is ever allowed to overflow because an overflowing console pushes paper back onto desks.

The person emptying the consoles needs a lockable transport container. The HSM 24 gallon, 27 gallon and 30 gallon lockable bins are sized for this: they are wheeled, they lock, and they fit through doorways and into elevators. One bin per collection round is usually sufficient for a floor; large buildings run a bin per floor and a cart to consolidate. The 65 gallon and 95 gallon bins are staged next to the shredder to hold a full round's worth of paper waiting to be fed, or to hold the shredded output before it goes to recycling.

• Console placement: one per executive office, one at reception, one per ten to twenty open-plan seats, one per department with sensitive paper.
• Emptying cadence: daily for high-volume or regulated areas, weekly as the default, monthly only where use is proven to be light. Never let one overflow.
• Transport: lockable wheeled bin (24, 27 or 30 gal) per round; keys held by the custodian, not left in the lock.
• Staging at the shredder: 65 or 95 gal bin for the incoming paper and a second for shreds if the machine's own bin is small.
• Shredder throughput: the departmental machine must clear a full round in the time available; if the custodian spends more than an hour shredding, step up a model class or add an autofeed unit.
• Documentation: a simple log of date, console, custodian and shredder run, kept with the security policy.

Feeding a departmental HSM shredder or a mobile service

Once the consoles are collected, the paper goes to a shredder that can clear the round in one session. For most professional offices that is a departmental cross-cut machine such as the HSM SECURIO P36i, which handles stacks of paper continuously with a large bin, or the SECURIO P44i where the volume is higher or the site wants a machine that will not be waiting on cool-down. Both accept staples and paper clips as normally found in office paper, both produce P-4 class particles suitable for personal and confidential material, and both are designed for the continuous duty that a weekly collection round implies. The full range is in the department shredders collection and our SECURIO model guide compares them.

If the custodian's time is the constraint, an autofeed machine changes the arithmetic. The SECURIO AF500 takes a stack of several hundred sheets in its tray and works through it unattended while the operator does something else, and it still has a manual slot for folders and the odd credit card. Our autofeed shredders guide explains when this pays. The alternative is a mobile shredding service that visits on a schedule and shreds the console contents in the truck. That works for sites with very low volume or no space for a machine, at the cost of an ongoing contract, a fixed visit schedule and paper sitting in consoles between visits. Many organisations run a hybrid: in-house shredding for daily material and a service for periodic file purges that would overwhelm the office machine.

Pairing consoles with bins: a simple standard kit

For a typical professional office of thirty to sixty people on one or two floors, a workable standard is one Executive Shred Console in each private office and at reception, one console per open-plan group, a 30 gallon lockable bin for the collection round, a SECURIO P36i or P44i in the copy room with a 65 gallon bin beside it for staging, and box inserts or bags matched to the shredder model. For a clinic or a law firm with more sensitive paper, keep the same layout and raise the shredder security level to P-5 or add a second machine so that the two are never both down. For a large building, multiply the kit per floor and add a 95 gallon bin and a collection cart at the central shredding point.

Buying the consoles and bins from the same source as the shredder has a practical benefit: the fitment of bags and box inserts to HSM shredder models is specific, and a dealer who supplies the whole kit will match them correctly the first time. It also gives you one point of contact when a console lock needs a replacement key or a bin needs a new caster.

Frequently asked questions

Is a shred console the same as a shredder?

No. A console is a locked cabinet that holds paper until it is shredded. It has no cutting mechanism. The shredding happens on a separate machine or in a service truck.

Do I need consoles if I already have a shredder in every department?

Usually yes. A shredder in the copy room does not stop paper accumulating on desks or going into open bins between visits. Consoles capture the paper at the point of disposal; the shredder destroys it later. The two are complementary.

How often should a shred console be emptied?

Weekly is the sensible default. High-volume or regulated areas such as records rooms and finance departments often need daily emptying, and light users can go longer. Watch the fill level for the first month and set the cadence per console. Never let one overflow.

Which HSM bin is best for collecting from consoles?

The 24, 27 and 30 gallon lockable wheeled bins are designed for the collection round. Choose the size that fits your elevators and doorways and holds a full round without being too heavy to push. The larger 65 and 95 gallon bins are better staged at the shredder than wheeled around the building.

Can consoles be used for a mobile shredding service instead of in-house shredding?

Yes. Consoles are the standard collection point for service shredding. If you switch from a service to in-house shredding later, the consoles stay in place and only the destination changes.
