What Is a Baler Machine? Types, Sizes and What They Actually Cost

A baler machine compresses loose waste material under hydraulic pressure into a dense rectangular block, bound with wire or strapping, called a bale. Balers handle cardboard, plastic film, paper and shredded material. They cut waste volume by roughly 80 to 95 percent, which reduces collection frequency and haulage cost, and they convert loose waste into a graded commodity that recyclers will collect and often pay for. Loose cardboard generally has no resale value; baled cardboard does.

Balers are the least understood machine in the waste handling chain, largely because the categories — vertical, horizontal, channel — describe very different classes of equipment with an order of magnitude between them in price and throughput.

How a baler works

Material is loaded into a chamber. A hydraulic ram, driven by an electric motor and pump, compresses it against a fixed platen. When enough compressed material has accumulated, the operator threads wire or strapping through channels in the chamber walls, ties the bale, and ejects it.

The compression ratio is the whole value proposition. A skip of loose cardboard that costs a fixed fee per lift becomes a handful of bales occupying a fraction of the space, and the collection interval stretches accordingly.

Vertical balers

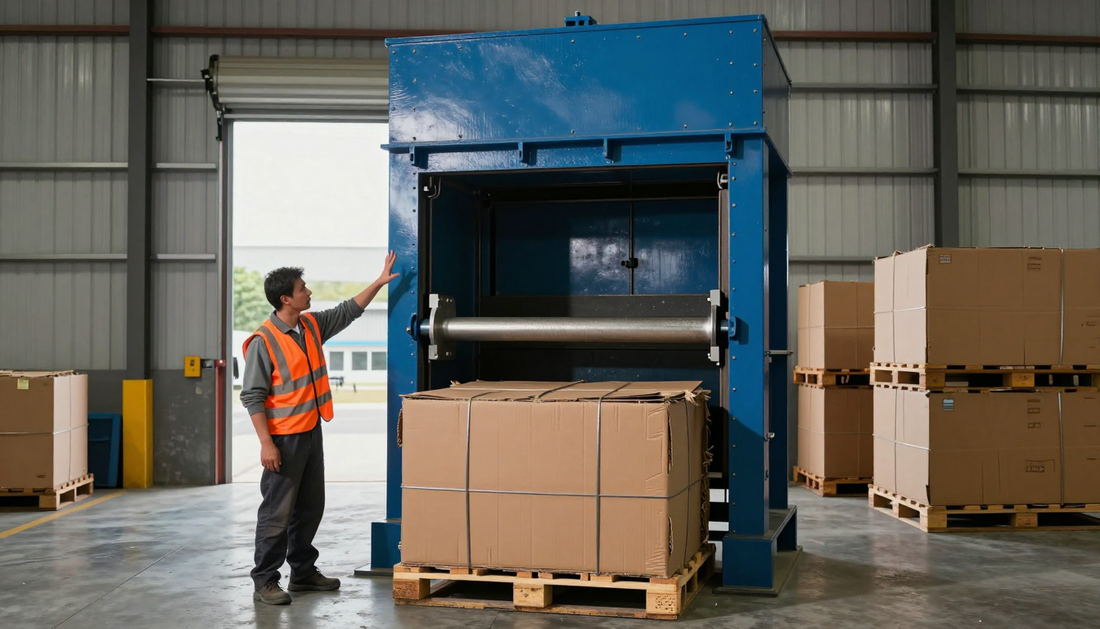

The most common commercial type. The ram compresses downward from above into a chamber loaded from the front.

• Footprint: compact, roughly the floor area of a large wardrobe
• Bale weight: commonly 100 to 500 kg depending on model and material
• Operation: manual loading, manual tying, manual ejection
• Suits: retail, hospitality, offices, warehouses, distribution

Vertical balers are the right answer for the overwhelming majority of commercial sites. They fit through a standard roller door, run on single or three-phase depending on model, and need no pit or foundation work.

Horizontal balers

The ram compresses horizontally, and material is usually fed continuously from above via a conveyor or chute rather than loaded by hand.

• Footprint: large, and needs clear space at the discharge end
• Bale weight: substantially higher than vertical
• Operation: semi-automatic or fully automatic, continuous feed
• Suits: high-volume industrial sites, recycling operations, large distribution centres

HSM's horizontal range includes machines such as the HL 7009 at 10.5 kW, designed for cardboard, plastic film and mixed paper, with optional lifting and tilting systems and wire mesh carts for feeding.

Channel balers

The industrial tier. Material is compressed through a channel and bales are extruded continuously, tied automatically, with no chamber door to open between bales.

• Throughput: continuous, the highest of any type
• Operation: fully automatic tying
• Suits: waste management operations, paper mills, very large industrial sites

HSM's VK channel press range spans a wide power band, from around 60 HP to 100 HP per drive on twin-motor configurations. These are capital equipment purchases with installation requirements, not plug-in machines.

Browse the full HSM baling press range.

How to size a baler

Size on daily material volume and on what your site can physically handle, in that order.

• Under 1 tonne per week: a small vertical baler, or reconsider whether baling pays at all
• 1 to 5 tonnes per week: a standard vertical baler
• 5 to 20 tonnes per week: a large vertical or entry horizontal
• Above 20 tonnes per week: horizontal or channel

Three site constraints matter as much as volume. Bale handling: a 400 kg bale needs a pallet truck or forklift, and someone competent to move it. Ceiling height: vertical balers need clearance above the ram. Power: most commercial balers above entry level are three-phase.

How the payback actually works

Two savings and one revenue line, in order of reliability.

Reduced collection cost. The most dependable saving. If you pay per lift or per container, cutting volume by 90 percent cuts lifts proportionally. This alone justifies most vertical balers.

Reduced landfill or general waste charges. Diverting cardboard from general waste into a recycling stream is usually cheaper per tonne, sometimes substantially.

Material revenue. Real but volatile. Recyclate prices move with commodity markets, and a rate that justified a purchase one year may not the next. Treat revenue as upside, not as the basis of the business case.

Set against these: capital cost, wire or strapping consumables, electricity, servicing, and operator time. The time cost is the one most often left out of vendor calculations.

Balers alongside shredding

Sites destroying paper at volume face a related problem: shredded paper is bulky and awkward to handle. Baling shredded output compresses it for collection and, because baled shredded paper is a saleable grade, can turn a disposal cost into a return.

HSM produces combination machines that shred and bale in one unit, such as configurations in the Powerline range. Where volume justifies it, this removes a material handling step entirely.

Quick reference

• Vertical: compact, manual, 100 to 500 kg bales, most commercial sites
• Horizontal: continuous feed, higher bale weight, industrial volume
• Channel: continuous extrusion, automatic tying, waste operations
• Volume reduction: roughly 80 to 95 percent
• Reliable payback: fewer collections, lower haulage
• Volatile upside: recyclate revenue
• Check: ceiling height, power phase, bale handling equipment

Frequently asked questions

What is a baler machine used for?

A baler compresses loose waste material such as cardboard, plastic film, paper or shredded output into dense bound bales. This reduces waste volume by roughly 80 to 95 percent, cutting collection frequency and haulage cost, and converts loose waste into a graded commodity recyclers will collect and often pay for.

What is the difference between a vertical and horizontal baler?

A vertical baler compresses downward into a front-loaded chamber, is compact, manually operated, and suits most commercial sites. A horizontal baler compresses sideways with continuous feed from a conveyor or chute, produces heavier bales, needs far more floor space, and suits high-volume industrial operations.

How much does a baler reduce waste volume?

Typically 80 to 95 percent, depending on material and machine class. Cardboard compresses particularly well. The practical effect is that a skip emptied weekly might become a handful of bales collected monthly.

Can you make money from baling cardboard?

Sometimes, but treat it as upside rather than the business case. Baled cardboard is a graded commodity recyclers will pay for, whereas loose cardboard generally is not. Recyclate prices are volatile. The dependable saving is reduced collection and haulage cost.

What size baler do I need?

Size on weekly material volume, then check site constraints. Under 5 tonnes a week suits a vertical baler; 5 to 20 tonnes suits a large vertical or entry horizontal; above that, horizontal or channel. Confirm ceiling clearance, three-phase power availability, and that you have a forklift or pallet truck able to move finished bales.

Specifying a baler

HSM Machines supplies the full HSM baling range, from compact vertical presses to HL horizontal machines and VK channel presses, alongside shredder and baler combination units. Browse the baling press range, or tell our team your weekly volume by material, your ceiling height, power supply and how you move pallets, and we will size a machine that fits the building as well as the tonnage.
