HSM ProfiPack Maintenance: Blades, Mats and Dust Control

A ProfiPack does not fail suddenly. It gets slowly worse, and by the time the output looks wrong the blades have already done months of avoidable work against packed cardboard dust. Cardboard converters live in a harsher environment than paper shredders: the material is abrasive, it sheds continuously, and the dust settles in exactly the places that matter. This guide covers the maintenance that keeps the machine producing clean honeycomb, the symptoms that mean stop now, and the feed habits that cause most of the damage.

Quick reference: the maintenance rhythm

• Daily — clear the output area, check nothing is caught in the blades, empty the dust that has settled below the cutting assembly.
• Weekly — open the access panel, brush the blade rows clean, inspect for lodged fragments and staples.
• Periodically — check drive tension and fasteners, look for polished or rounded tooth edges.
• Immediately — stop if the machine changes pitch under load, if output quality drops, or if you smell hot motor.
• Never — feed wet, waxed or heavily taped cardboard, or anything with plastic strapping still attached.

Why cardboard is harder on a machine than paper

Corrugated board is engineered to resist crushing, which means the machine works against the material rather than slicing through it. Three consequences follow.

Higher continuous load. The drive is under sustained torque rather than the brief peaks a paper head sees. That heat has to go somewhere, and ventilation paths blocked by dust are the usual reason it does not.

Abrasive dust in volume. Cardboard sheds fibre and filler continuously. It packs into the recesses around the cutting shafts, insulating bearings, holding moisture and grinding at seals.

Contaminant risk. Incoming cartons carry staples, plastic strapping, tape and occasionally forgotten contents. A metal staple through a tooth root does more damage in a second than a week of normal running.

Blade care in practice

The cutting assembly is the machine. Everything else is a frame around it.

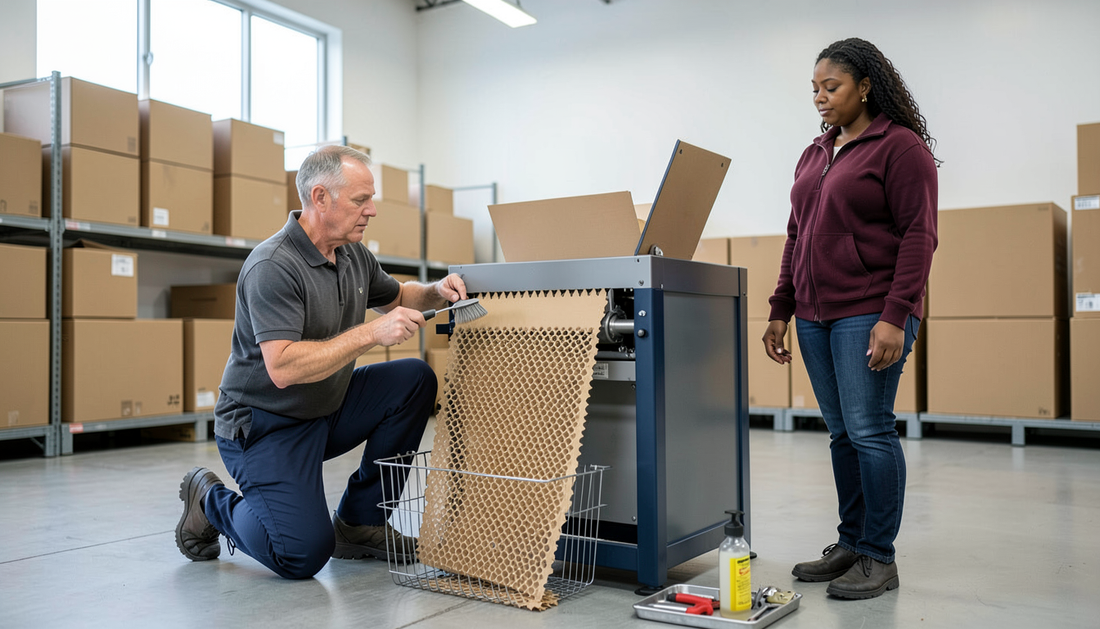

Keep it clean. A stiff brush along the blade rows once a week removes packed fibre before it hardens. Isolate the machine at the disconnect first — not just at the control switch — and use a brush rather than fingers or a screwdriver. Compressed air moves dust around rather than removing it and drives fibre further into the bearings, so brush and collect instead.

Watch the tooth profile. Sharp teeth have a defined edge and bite the board. Worn teeth look polished and rounded, and the machine starts pulling material unevenly. Catching that early lets you plan a service; missing it means an increasingly stressed drive.

Remove lodged fragments. Small cardboard wedges caught between teeth change the cutting geometry and cause the machine to grab. They come out easily when found and cause repeated jams when left.

Lubrication follows the manufacturer's schedule for the specific model. Paper shredder oil is not a substitute for the drive lubrication a converter specifies — see supplies and accessories for the correct consumables.

Dust control

Cardboard dust is the quiet cause of most converter problems. It insulates the motor, clogs ventilation, holds humidity against metal, and in enough quantity becomes a housekeeping and air-quality issue in the packing area.

The controls are simple. Site the machine where there is air movement rather than in a sealed corner. Sweep or vacuum around and beneath it as part of the daily close-down rather than weekly. Keep ventilation grilles clear — they block from the outside, so a visual check takes seconds.

If the machine is running heavily in an enclosed space, extraction is worth considering. It is not standard on most installations, but a packing room processing hundreds of cartons a day accumulates a genuinely noticeable amount of airborne fibre.

Feed discipline: where most damage originates

Most converter damage is caused at the feed, not by wear.

Remove strapping and heavy tape. Plastic strapping wraps around shafts. Heavy gummed tape balls up and jams. Both are avoidable with a few seconds of preparation.

Do not feed wet or waxed board. Damp cardboard is limp and does not cut cleanly; waxed board leaves residue on the blades that traps fibre. Neither belongs in the machine.

Feed at the rated thickness. Forcing triple-wall through a machine rated for double-wall works right up until it does not. If your incoming board is heavier than the machine's rating, the answer is a bigger machine — see ProfiPack C400 vs P425 for how the models differ.

Let it clear. Stacking the next sheet in before the last has passed is the most common cause of jams, and every jam is a shock load on the cutting head.

Symptoms and what they mean

Output quality drops — honeycomb tearing rather than expanding cleanly, or an inconsistent lattice. Usually dull or fibre-packed blades. Clean first; if it persists, the teeth are worn.

Pitch changes under load — the machine labouring where it used to run steadily. Either the material is heavier than the rating or the blades are no longer cutting efficiently. Stop and investigate rather than pushing through.

Repeated jams on material that used to feed — almost always a lodged fragment or a worn tooth profile.

Hot motor smell or thermal cut-outs — stop immediately. Blocked ventilation, packed dust, or sustained overload. Continuing risks the motor rather than just the blades.

Frequently asked questions

How often should I clean the ProfiPack blades?

Weekly for a machine in regular daily use, more often if you are processing heavy volumes or dusty recycled board. The job takes a few minutes with a stiff brush and prevents the majority of converter problems.

Can I use compressed air to clean it?

It is not the best choice. Compressed air drives fibre further into bearings and ventilation paths and puts dust into the air of the packing room. Brushing and collecting removes the material rather than relocating it.

Do the blades need oiling like a paper shredder?

Not in the same way. Paper shredder oil is applied to cutting discs to reduce friction on paper; a converter's lubrication requirement is a drive specification set by the model. Follow the manual for the machine rather than applying shredder oil.

What happens if a staple goes through?

Usually nothing dramatic once. Repeatedly, staples chip tooth edges and accelerate wear. Removing obvious metal at the feed is cheap insurance.

How do I know when blades need replacing rather than cleaning?

If output quality stays poor after a thorough clean, and the teeth look polished and rounded rather than sharply defined, the cutting assembly needs attention. That is a service job rather than a user task.

Keeping it producing

Weekly brush-out, daily dust sweep, clean feed material, and stop at the first change in sound. Four habits, and they cover most of what shortens a converter's life.
